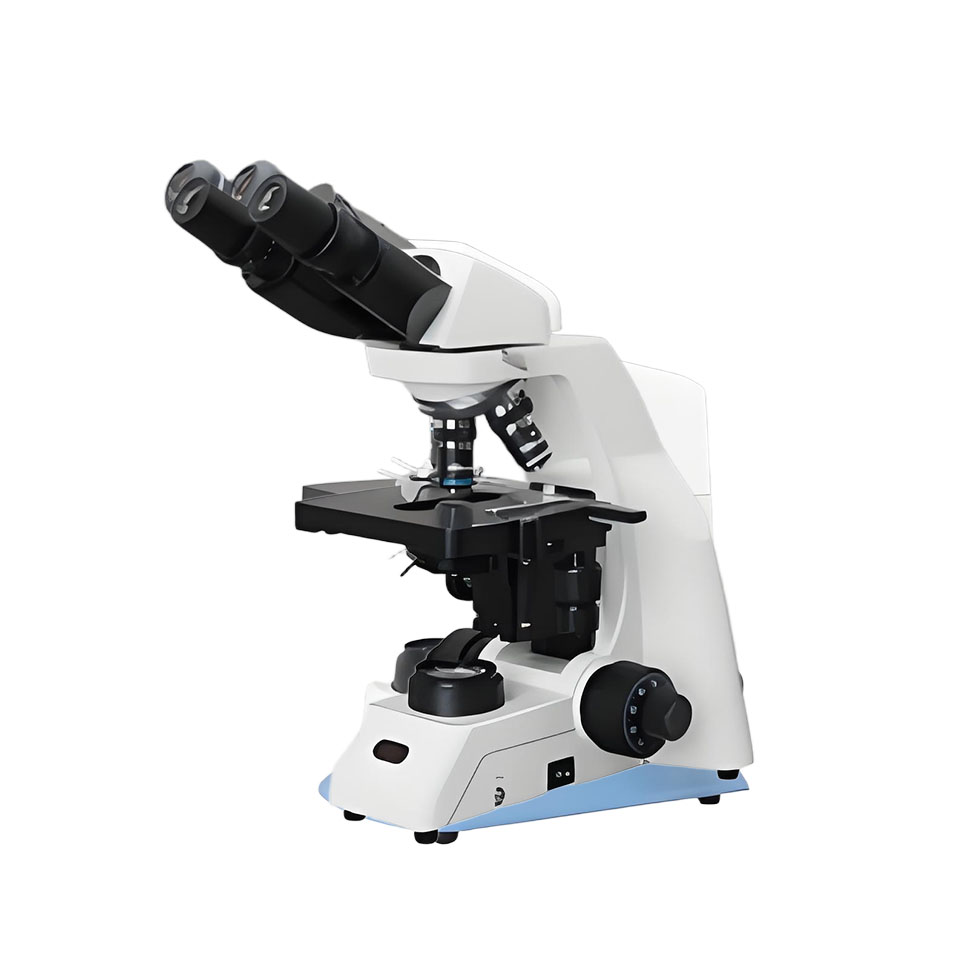

N-125 & N-126 Biological Microscope

无限远光学系统   Infinite Optical System

●

有限远光学系统   Finite Optical System

●

WF10×/18

●

WF10×120

●

单目观察头，30°倾斜Monocular Head Inclined at 30°

O

铰链式双目观察镜筒，30°倾斜，瞳距47-78mm
Seidentopf Binocular Viewing Head Inclined at 30°,Interpupillary 47-78mm

●

●

铰链式三目观察镜筒，30°倾斜，瞳距47-78mm
Seidentopf Trinocular Viewing Head Inclined at 30°,Interpupillary 47-78mm

O

O

数码观察镜筒，30°倾斜，瞳距47-78mm,500万像素，支持WIFI
Digital Viewing Head Inclined at 30°,Interpupillary 47-78mm,5M pixels,Support Wifi

O

O

数码液晶屏，30°倾斜，瞳距55-75mm,500万像素，8寸液晶屏，安卓系统
Digital Viewing head Inclined at 30°,Interpupillary 47-78mm,5M pixels,8”LCD,Android OS

O

O

4×   N.A=0.1   WD=18

●

10×  N.A=0.25  WD=7

●

40×  N.A=0.65  WD=0.53

●

100× N.A=1.25   WD=0.13

●

4×  N.A=0.1    WD=16.8

●

10× N.A=0.25   WD=5.8

●

40× N.A=0.65   WD=0.43

●

100× N.A=1.25  WD=0.13

●

内向式四孔转换器   Backward Quadruple Nosepiece

●

●

双层活动平台，尺寸140×140mm,移动范围75×50mm
Double Layers Mechanical Stage 140X140mm,Moving Range 75X50mm

●

双层活动平台，尺寸150×139mm,移动范围75×52mm,同步带结构
Reckless Double Layers Mechanical Stage 150X139mm,Moving Range 75X52mm

●

阿贝聚光镜NA1.25    NA1.25 Abbe Condenser

●

●

暗场聚光镜(干，油)   Dark Field Condenser (Dry,Oil)

O

O

粗微动同轴调焦，微动0.002mm/格，升降范围25mm;
Coaxial Coarse and Fine Adjustment.Fine Division 0.002mm.Moving Range 25mm

●

●

6V20W卤素灯   Halogen Lamp 6V/20W

O

O

S - LED照明  S-LED Illumination

●

●

S-LED充电型    S-LED Illumination with Recharger

O

O

科勒照明   Kohler Illumination

O

O

E C O 功 能  ECO Function

O

O

反光镜   Plane-concave Mirror

O

O

LED荧光照明    Fluorescent Illumination,LED lamp

O

O

汞灯荧光照明   Fluorescent Illumination,100W HBO lamp

O

O

O

O

O

O
